Architectural

Splitbox Spy

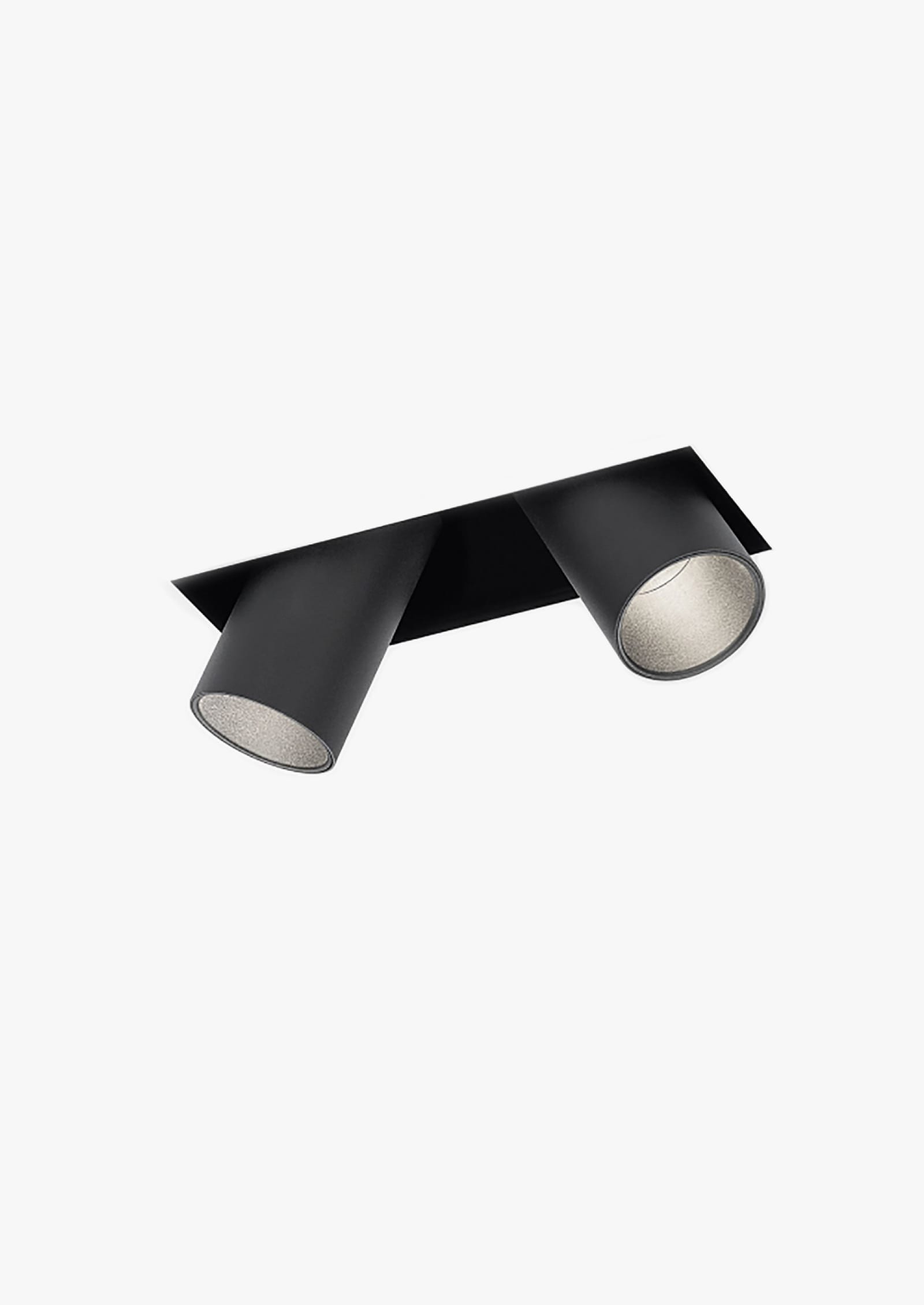

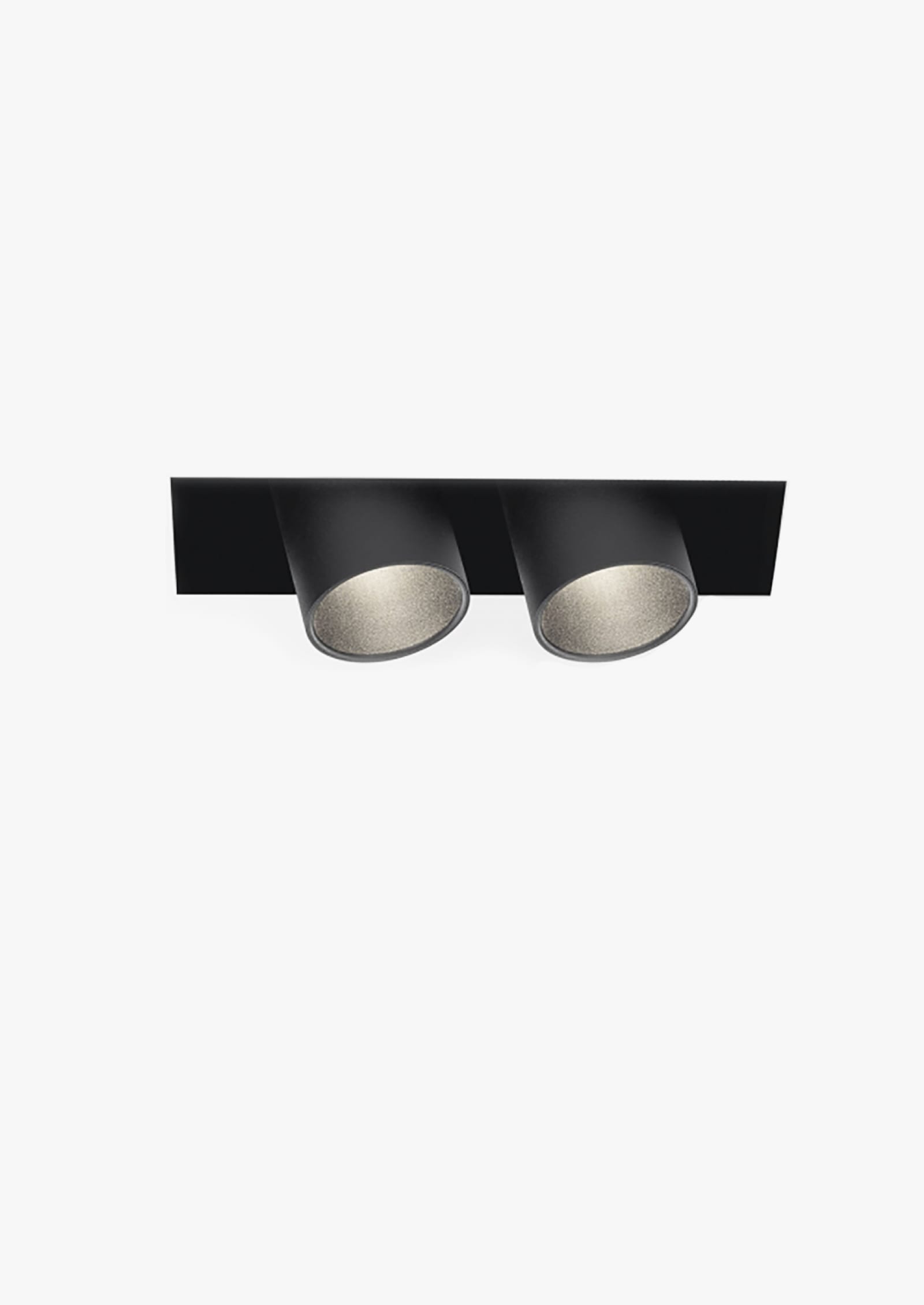

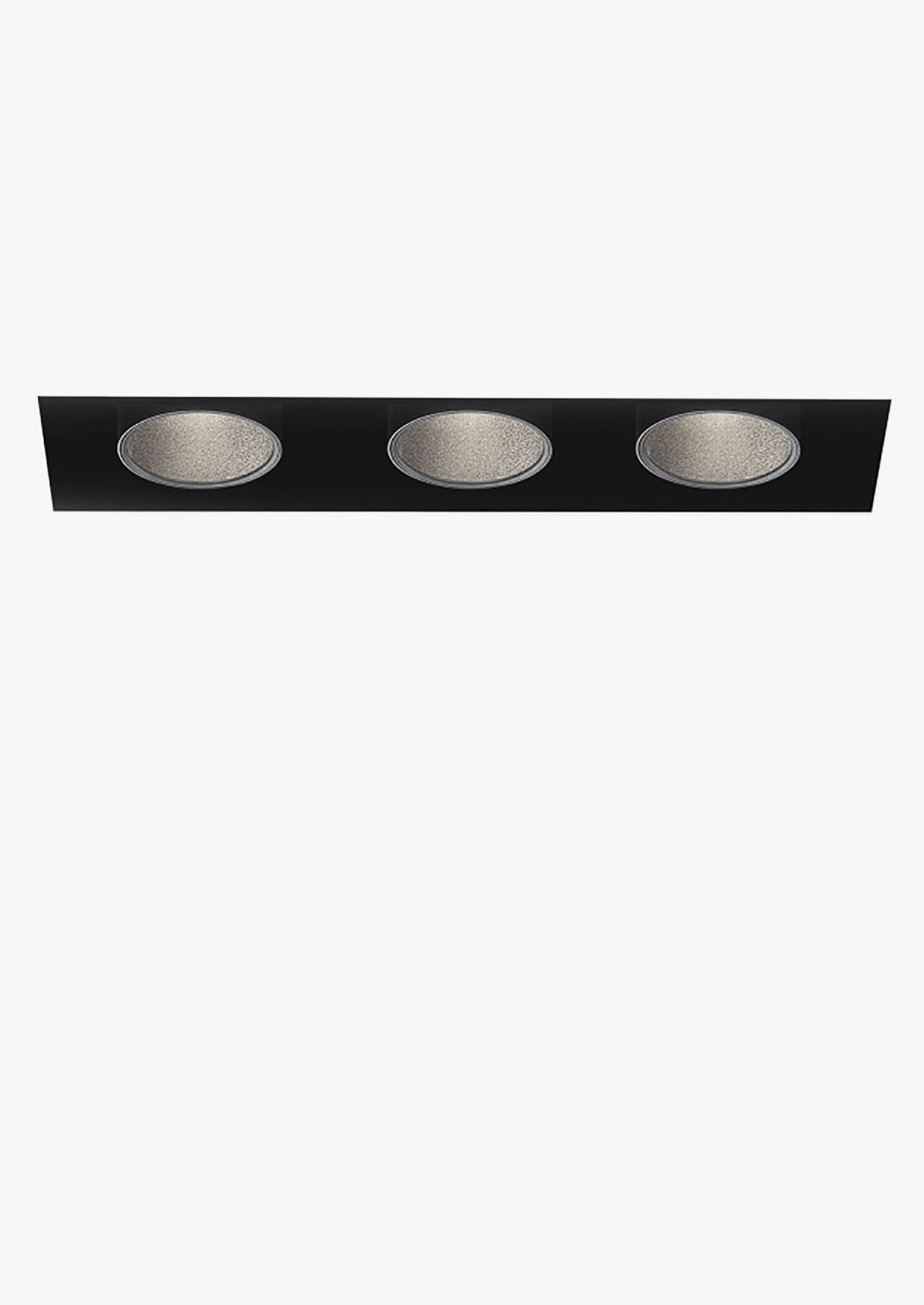

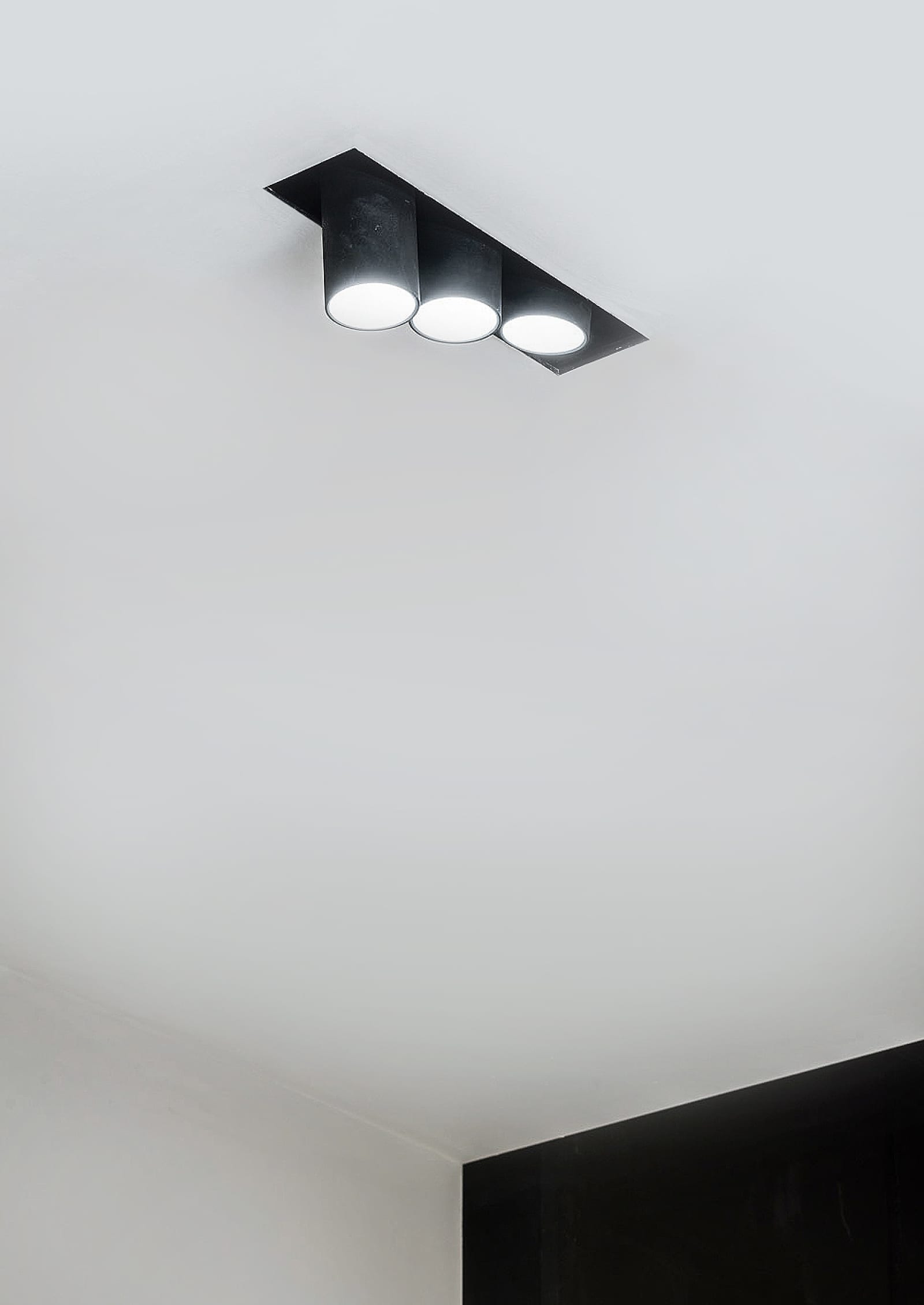

Trimless integrated lighting system with full flexibility of surface mounted lighting. A black minimalistic cove of 80mm wide and 225mm or 315mm long can be equipped with one, two or three highly flexible spot modules. These Spy modules can remain encapsulated in the ceiling, or emerge in its entirety and be tilted 90° while rotate 355°.

Save Specs
  • Thickness of mounting surface: 3/8" max
  • Spy Focus option available using adjustable beam spread - 11°-44°.
  • Exchangeable inserts available in: black, white, mat gold or silver grey finish.
  • Spy module finishes available in:
  • Black + Black
  • Black + White
  • Spy LED Module:
  • 4 3/8" H x 2 7/17"ø
  • Splitbox 2:
  • 12 3/16" W x 9 5/8"D
  • 24W 1061lm 44lm/w
  • CRI 90 2700K
  • Splitbox 3:
  • 15 3/4"W x 9 5/8" D
  • 36W 1591lm 44lm/w
  • CRI 90 2700K
  • Recessed Depth:
  • 7 1/16"
  • IP20 - Rated for dry/damp locations.
  • ETL Listed
  • *Dimmable Power Supply Available.
