Architectural

Maggy 72

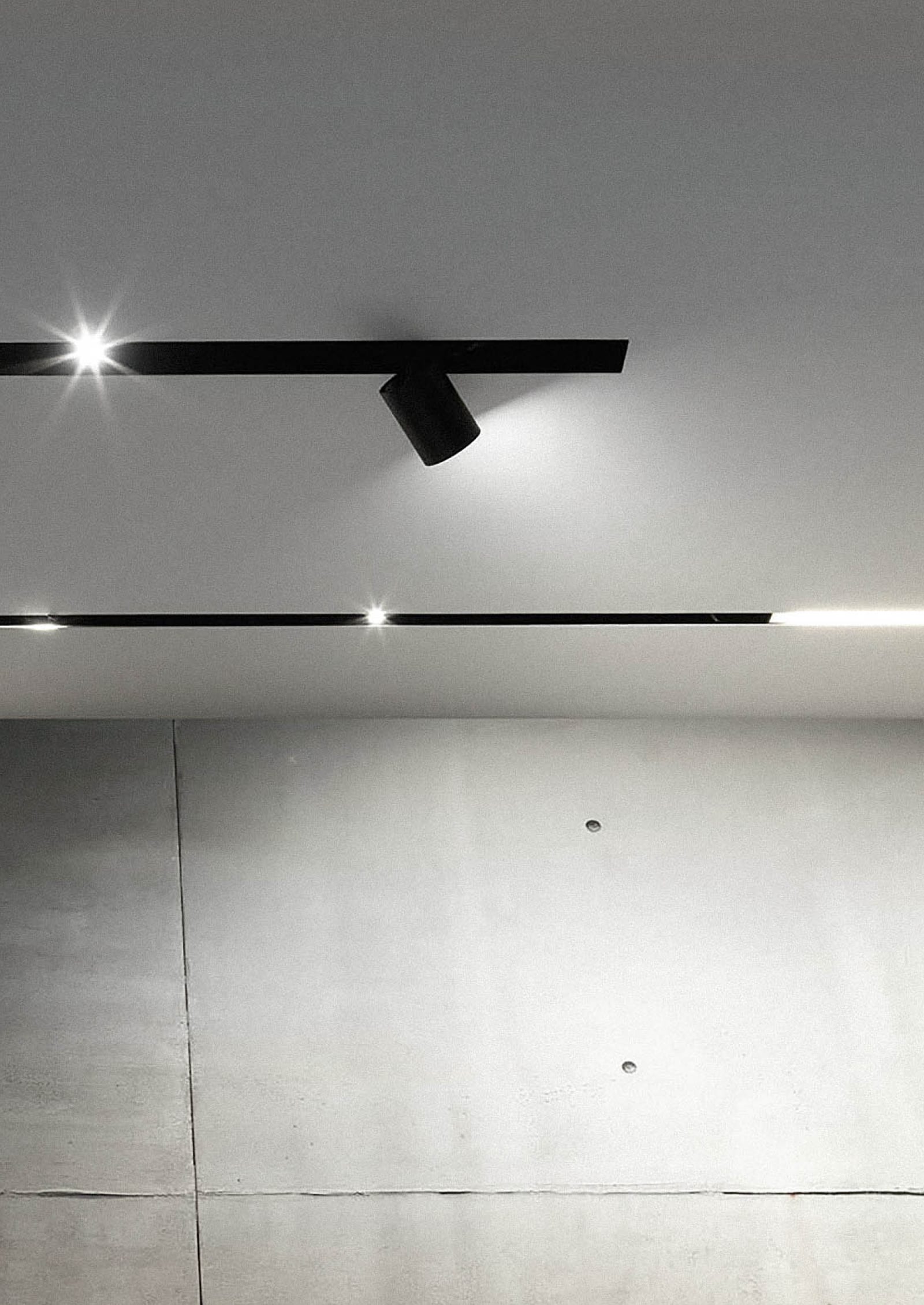

Linear profile system allows trimless installation of 2.8” (72mm) width that can be equipped with various light modules fastened to the structure via magnets - linear (Ben), fixed (David), adjustable (Leonard), spotlight (Prince).
Design by: Lapo Grassellini

Save Specs
  • Profile Opening: 2.8’’; 1.7” Flange
  • Housing Size: 6.7” W x 4.2” H

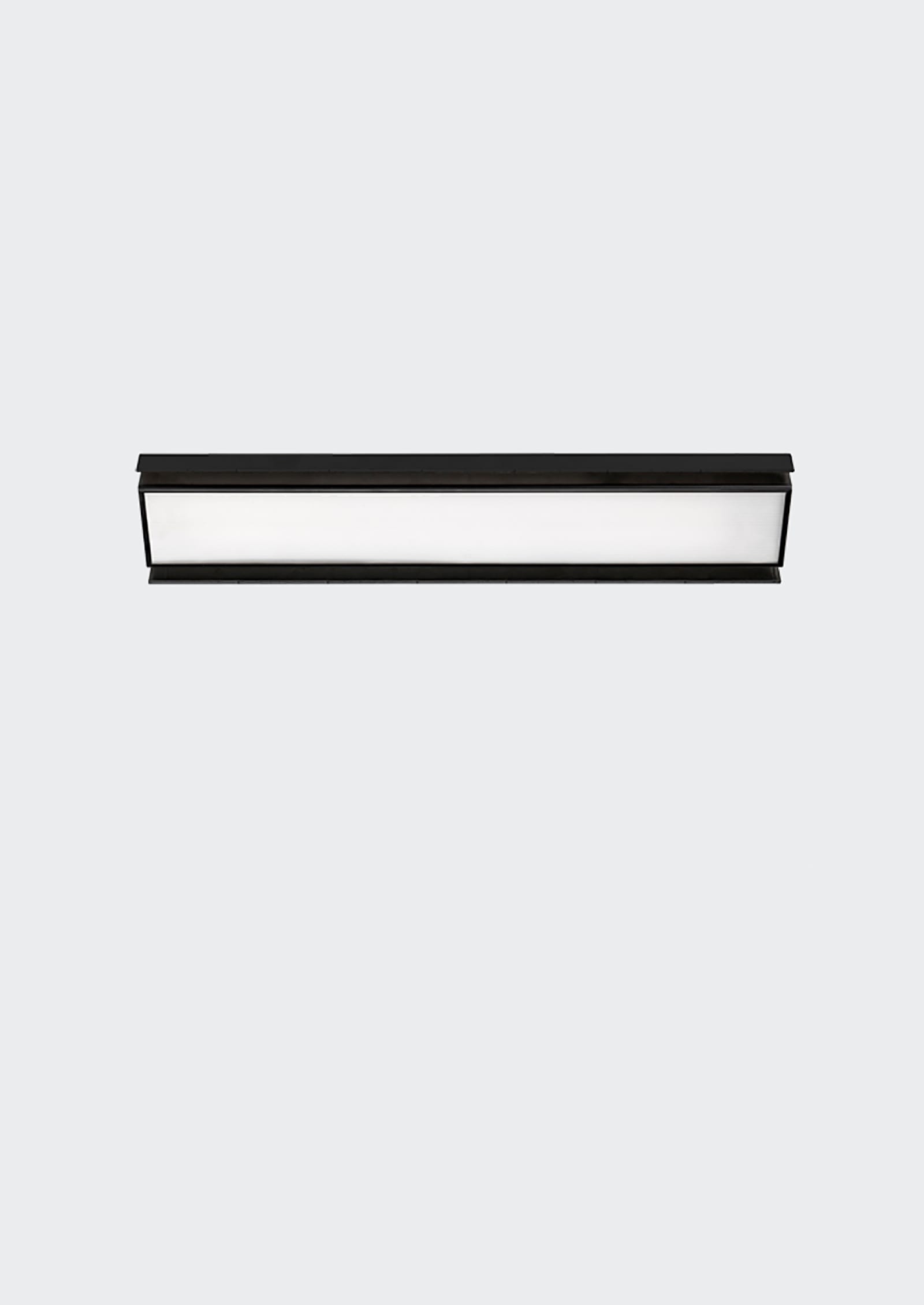

  • Ben 72: 19.7” L
  • 30W LED, 24V DC, 95 CRI
  • *Parallel Wiring

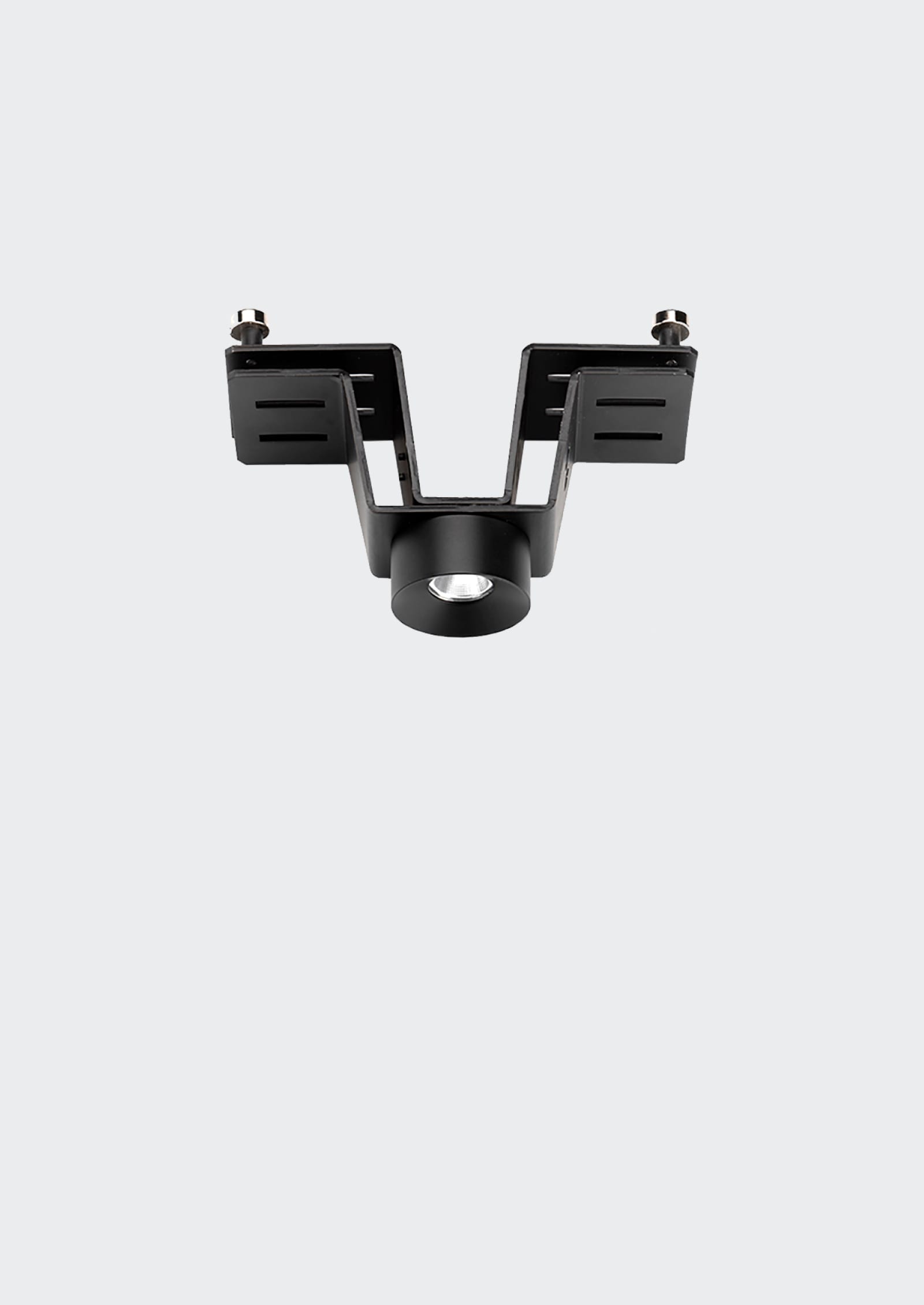

  • David 72: 6.3” W
  • 20W LED 500mA, 93 CRI
  • *Series Wiring

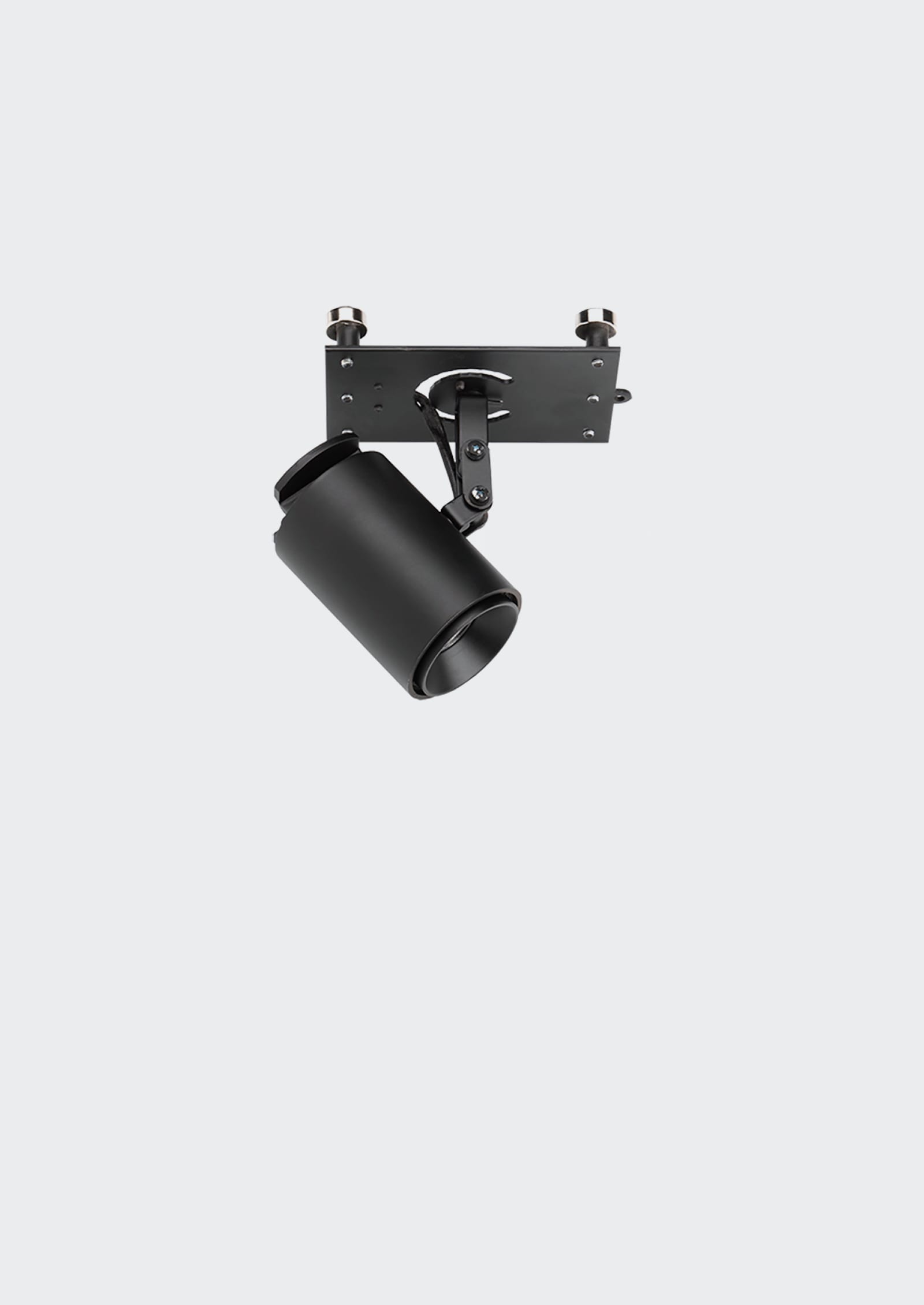

  • Leonard 72: 3.9” W
  • 360º rotation w/ 45º vertical adjustability.
  • 10W LED 500mA, 98 CRI
  • *Series Wiring

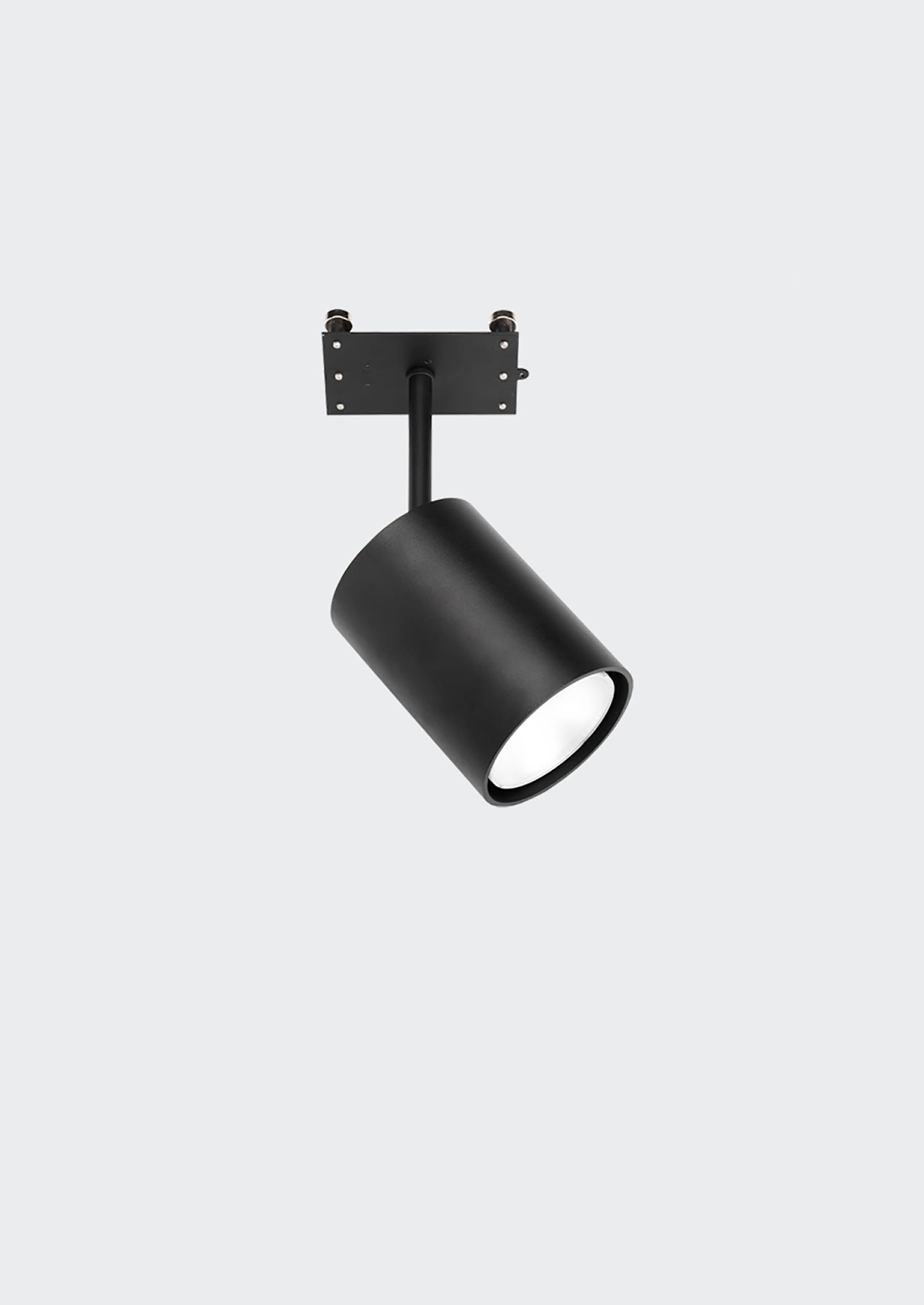

  • Prince 72: 4.2” W
  • Shade: ø3.5” x 4.7” H
  • 360º rotation w/ 75º vertical adjustability.
  • 20W LED 500mA, 93 CRI
  • Beam Angles: 23º, 35º, 52º
  • *Series Wiring
  • Color Temperatures:
  • 2700K, 3000K, 3500K, 4000K
  • Beam Angles: (David, Leonard)
  • 36º, 46º, 20+55º (Leonard only), 60º
  • Dimming Options:
  • 0-10V, Phase, Lutron 2-Wire Phase, or Lutron Ecosystem
  • IP20 - For interior use only.
  • ETL Listed
