Architectural

Maggy 36

Linear profile system allows trimless installationof 1.4” (36mm) width that can be equipped with various light modules fastened to the structure via magnets - linear (Ben), fixed (David), adjustable(Leonard), spotlight (Prince).
Design by: Lapo Grassellini

Save Specs
  • Profile Opening: 1.2’’; 1.7” Flange
  • Housing Size: 5.3” W x 3.5” H
  • Ben 36: 19.7” L
  • 15W LED, 24V DC, 95 CRI
  • *Parallel Wiring

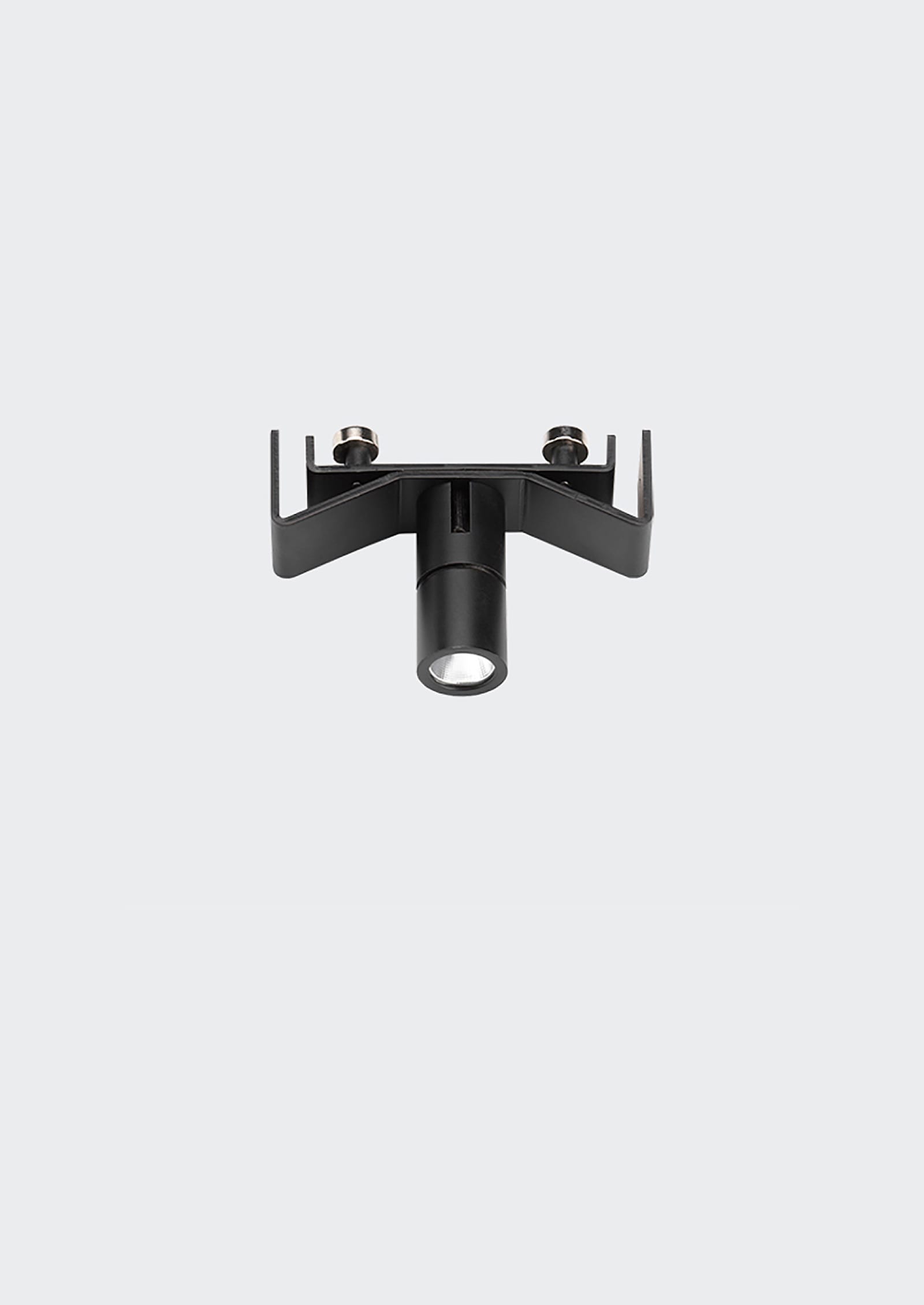

  • David 36: 4.7” W
  • 10W LED 500mA, 98 CRI
  • *Series Wiring
  • Leonard 36: 4.2” W x ø1” Shade
  • 360º rotation w/ 45º vertical adjustability.
  • 10W LED 500mA, 98 CRI
  • *Series Wiring

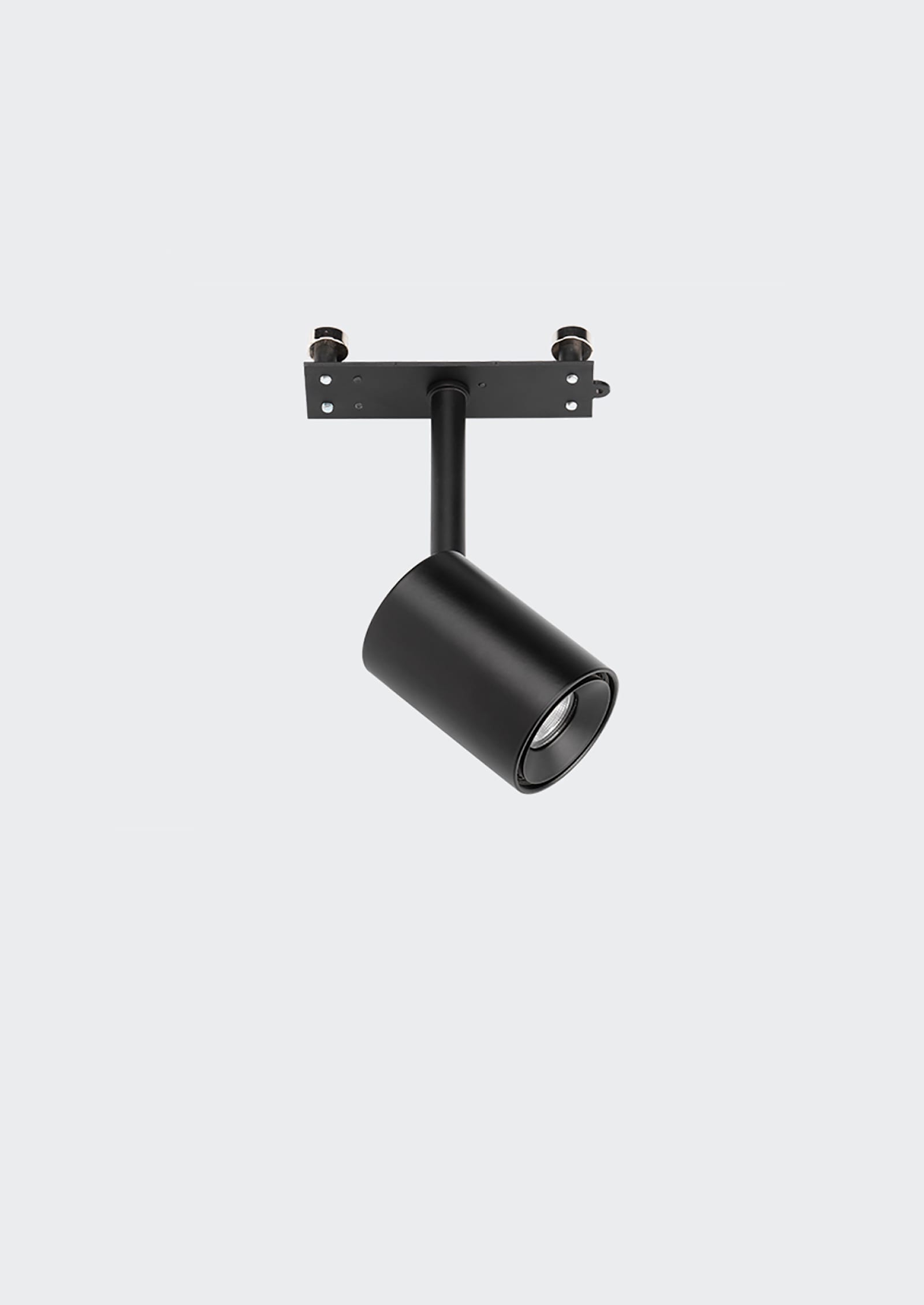

  • Prince 36: 4.2” W
  • Shade: ø1.9” x 2.8” H
  • 360º rotation w/ 75º vertical adjustability.
  • 10W LED 500mA, 98 CRI
  • *Series Wiring
  • Color Temperatures:
  • 2700K, 3000K, 3500K, 4000K
  • Beam Angles: (David, Leonard, Prince)
  • 25º, 45º, 20+55º, 60º (Prince only)
  • Dimming Options:
  • 0-10V, Phase, Lutron 2-Wire Phase, or Lutron Ecosystem
  • IP20 - For interior use only.
  • ETL Listed
